DEVRIES INTERNATIONAL TS-16949/ISO 9001 DESIGN DATA SHEET


CUSTOMER INFO
Customer:
Date:

Address:

City:
State:
Zip Code:
Contact and Title:
Telephone
Fax:
Email:
PART & EQUIPMENT INFO
Customer Part No.:
deVries Part No.:
Equipment Type:
Application:
USAGE
First Year:
Second Year:
Prod. Start Date:
Peak Months:
Special Operating Condition:

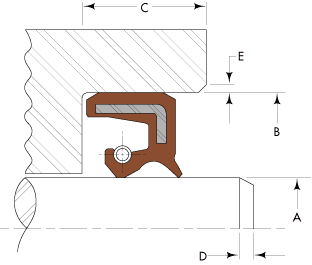

tolerance illustration
INCLUDE ALL TOLERANCES
A. Shaft Diameter:
B. Bore Diameter
C. Bore Depth:
D. Shaft Chamfer and Angle:
E. Bore Chamfer and Angle:
Installation Direction: (check one)
installation direction
Special Assembly Condition:
PART SPECIFICATIONS
SHAFT Horizontal
Vertical
           Material:
Finish:
Hardness:

BORE   Material:
Finish:
Hardness:

MOTION Rotating
  RPM Normal:
RPM Max:
Direction from Air Side
Clockwise
Counter-CW
Bi-Directional
  Shaft Runout, TIR: Misalignment:
Frequency of Rotation
Continuous
Intermittent
Reciprocating
Oscillating
  Stroke Length or ° of Arc:
Cycles/Min:

FLUID
MEDIUM
Internal
  Type:
Level:
Dry Mist
Flooded
Half Shaft
Start-up at Seal Lip
Dry
Lubed/Type:
External
  Type:
Miscellaneous:

TEMP.   Type:
Celsius°
Fahrenheit°
Minimum:

Normal:
Maximum:

PRESSURE

Normal PSI:
Maximum PSI:
RPM at Maximum PSI:

BEARING Ball Bearing
Roller Bearing
Bushing
